Crystal COB
  • The Crystal COB Series is a premium display solution designed for fixed indoor installations requiring exceptional visual clarity and reliability. With an ultra-fine 0.93mm pixel pitch, it delivers stunning detail and sharpness, making it ideal for high-end corporate environments, control rooms, broadcast studios, and retail spaces. Equipped with Flip-Chip COB (Chip-on-Board) technology, the panel has enhanced performance, durability, and efficiency compared to traditional SMD LEDs. Installation is hassle-free, featuring seamless splicing technology, front service access, and uniform mounting, streamlining setup and maintenance. Its 175° horizontal and vertical viewing angle guarantees superior visibility from any position, providing a truly immersive viewing experience. The panel is sealed with epoxy resin, making it water and dust-resistant, ensuring longevity and stable performance in various indoor environments. Thanks to Black-Seal technology, the panel offers high contrast levels, delivering deep blacks and vibrant colors for exceptional image quality. Pixel-to-pixel calibration ensures precise color accuracy and consistency across the entire display, while a high refresh rate of 7680Hz guarantees smooth, flicker-free visuals, perfect for high-end content playback and live video applications. The Crystal COB Series is the ultimate choice for professionals seeking cutting-edge display technology with refined visuals, high reliability, and effortless integration into modern indoor spaces.
  • LED Module pitch 0.93mm for indoor use
  • LED Type: Flip-Chip COB
  • Hassle-free installation with seamless splicing technology
  • 175° x 175° Super viewing angle for an immersive experience
  • Water and dust-resistant COB modules
  • Black Seal technology for intense contrast and pristine detail
  • Pixel-to-Pixel calibration for uniform brightness and colors across multiple displays
  • HSP (High Stability Processing) for enhanced stability, clarity, and consistency of visual output
  • High refresh rate of 3840Hz
  • Pixel Pitch 0.93mm
  • Led Type: Flip-Chip COB
  • Module Dimensions (W x H x D): 150 x 168.5 x 2mm
  • Module Resolution: 160 x 180 pixel
  • Cabinet Dimensions (W x H x D): 600 x 337.5 x 27mm
  • Cabinet Resolution: 640 x 360 pixel
  • Cabinet Weight: 4.5 kg
  • N. of modules per panel: 8
  • Brightness: 800 Nits (average) / 1000 Nits (max)
  • Maintenance: Front
  • Refresh Rate: = 7680Hz
  • Output bit depth: 16 bit (standard) / up to 18 bit
  • Viewing Angle (H/V): 175°x175°
  • Operating Voltage: 110/240V 50/60Hz
  • Operating Temperature: -20° to 45°C
  • Power Consumption: 150W/sqm (average), 450W/sqm (max)
  • Lifespan: 100.000 hrs


GYÁRTÓ: HELVIA

Értékeld

Megjegyzés: HTML formázás nem lehetséges!
    Rossz           Jó

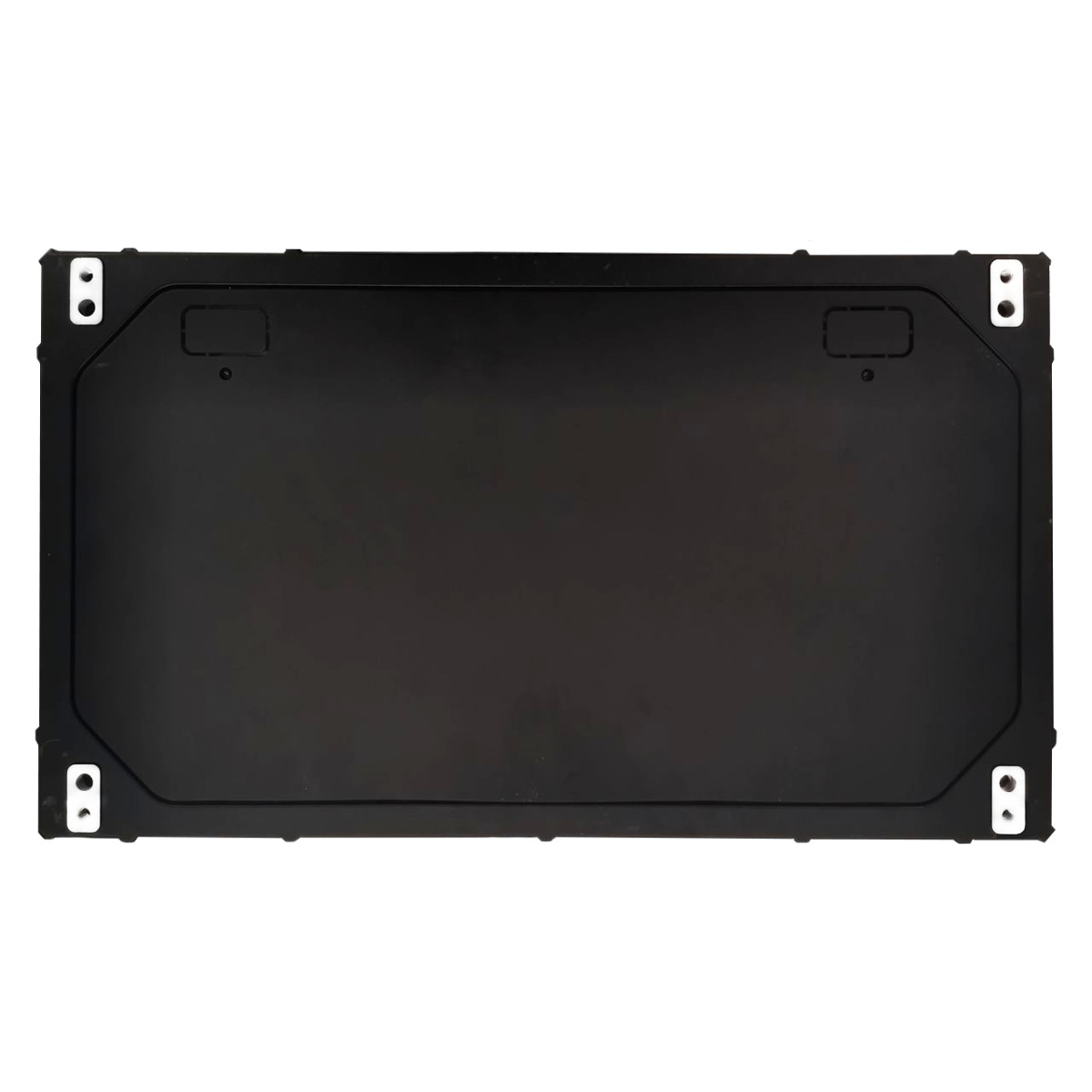

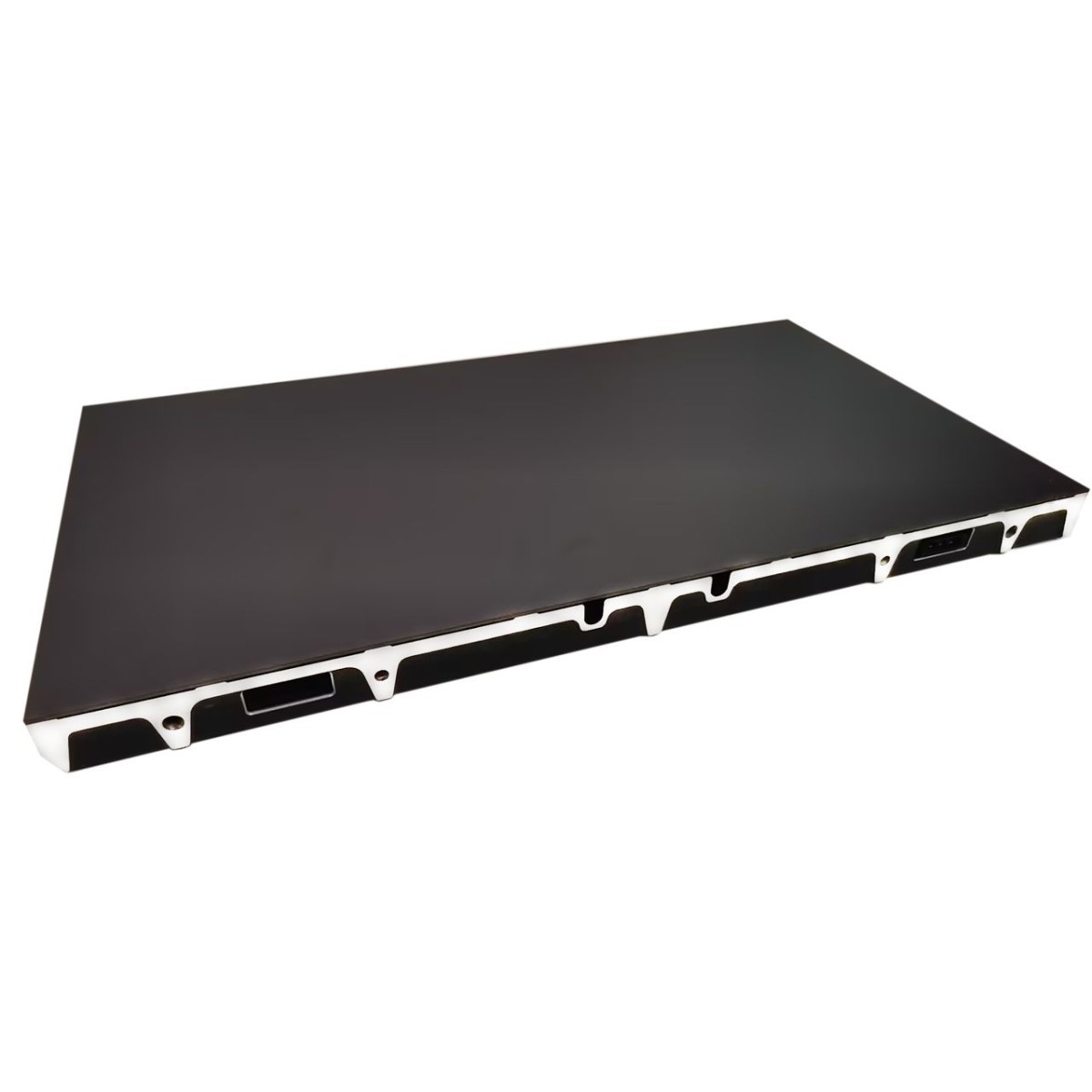

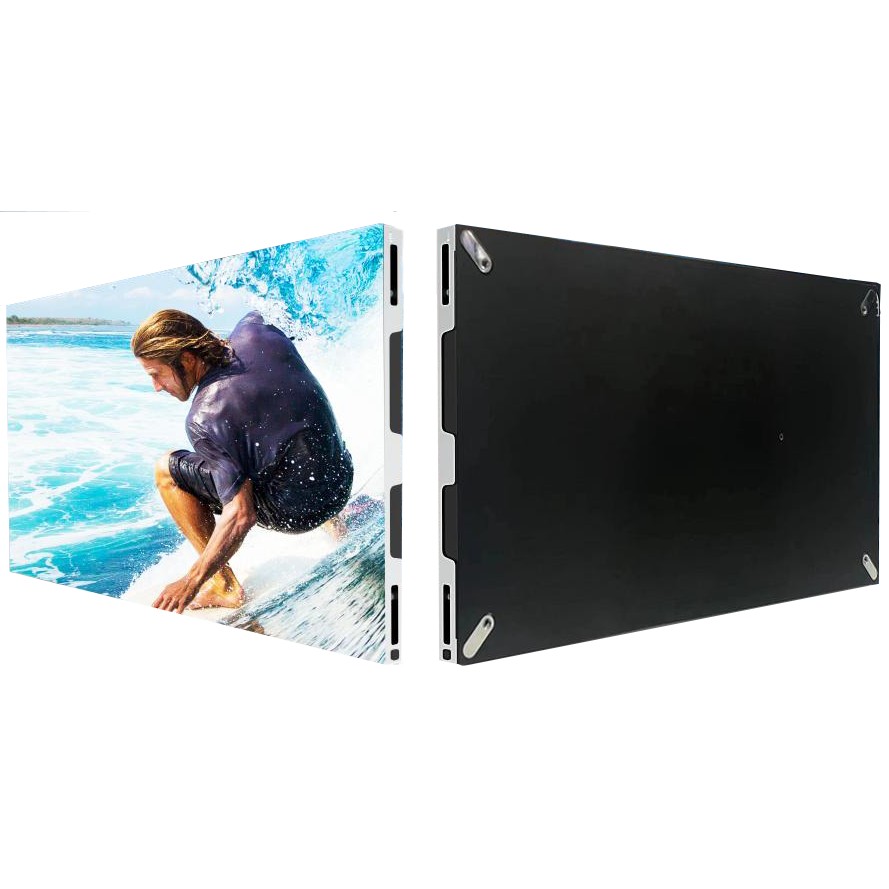

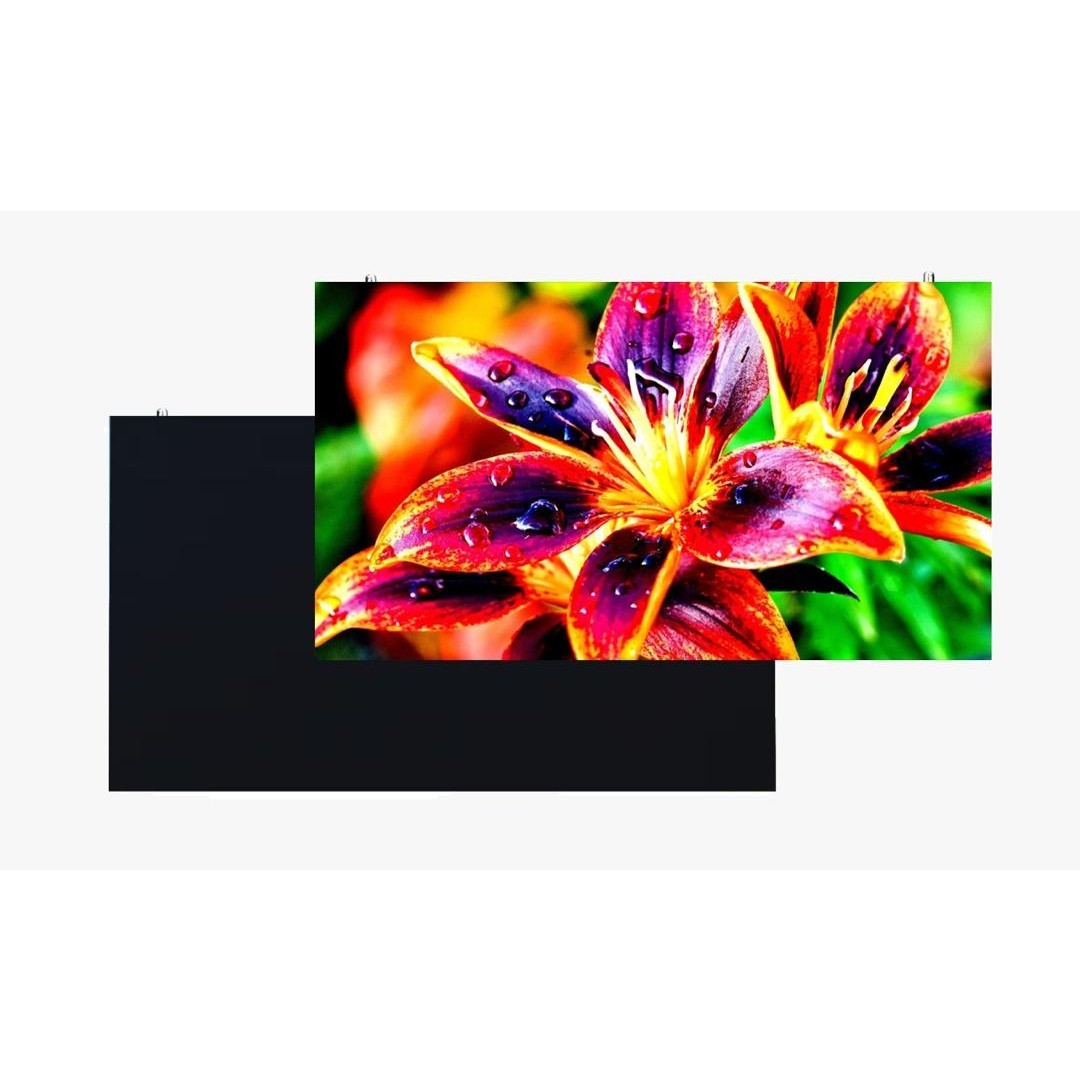

HELVIA CRC-093v1-0.9 - Indoor COB LED panel for composite screens for fixed installations 0.93mm pitch 600x337,5mm

  • 881 900 Ft
