EVOCA
GYÁRTÓ: HELVIA

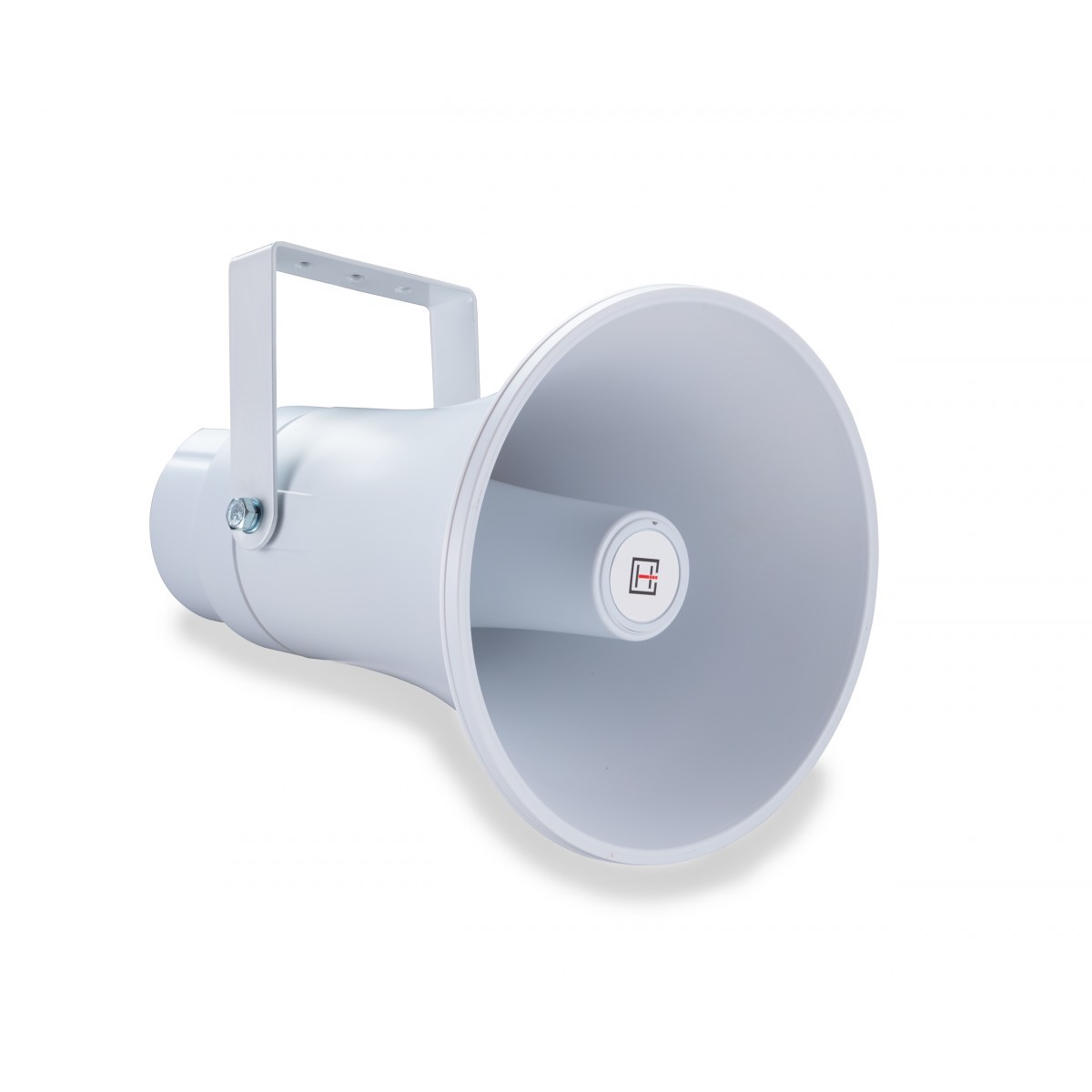

- HELVIA EVOCA 30H is a compact, lightweight and waterproof horn speaker, designed to provide high efficiency and high sound intelligibility with low distortion. The built-in line transformer allows the horn to be connected to 70V and 100V constant voltage or low-impedance lines, and select the power through the rotary dial on the rear cover. The horn can be easily mounted to any wall or ceiling by using the stainless-steel mounting bracket. Thanks to the weatherproof treated plastic housing, the EVOCA 30H has an IP66 Ingress Protection standard, which make it suitable for outdoor installations.
- IP66 Protection Type
- Built-in 30W/15W/7.5W/3.75W Multi-Tap Transformer
- Adjustable Power Taps with 100V / 70V / 8O Modes
- 105dB SPL
- High Quality Plastic Housing
- Rated Power @ 100V: 30W / 15W / 7.5W / 3.75W
- Rated Power @ 70V: 15W / 7.5W / 3.75W / 1.9W
- Impedance: 8O / 333O / 666O / 1.3KO / 2.6KO
- Sensitivity: 105 dB (1W/1m)
- Frequency Range: 400Hz ~ 10KHz
- Protection Level: IP66
- Color: White
- Horn: Plastic
- Diaphragm: Phenolic
- Magnet: Ferric
- Mounting bracket: Stainless Steel
- Mounting holes: 3x Ø7.5mm (0.03 inch) holes with 30mm (1.2 inch) space
- Horn Size: Ø240 x 303mm (Ø9.45 x 11.93 inch)
- Net weight: 2,3 kg - 5.07 lbs.
- Packing Size: 250 x 250 x 325 mm (98.42 x 98.42 x 127.95 inch)
- Gross Weight: 2,6 kg - 7.73 lbs.
GYÁRTÓ: HELVIA
| Általános | |
| Megnevezés | Hangprojektor |
HELVIA EVOCA 30H - 30W Outdoor Horn Speaker for PA Systems
- Gyártó: HELVIA Kategóriák: Hangtechnika > Hangfal
- Cikkszám: J750J
-
20 900 Ft
