EVOCA

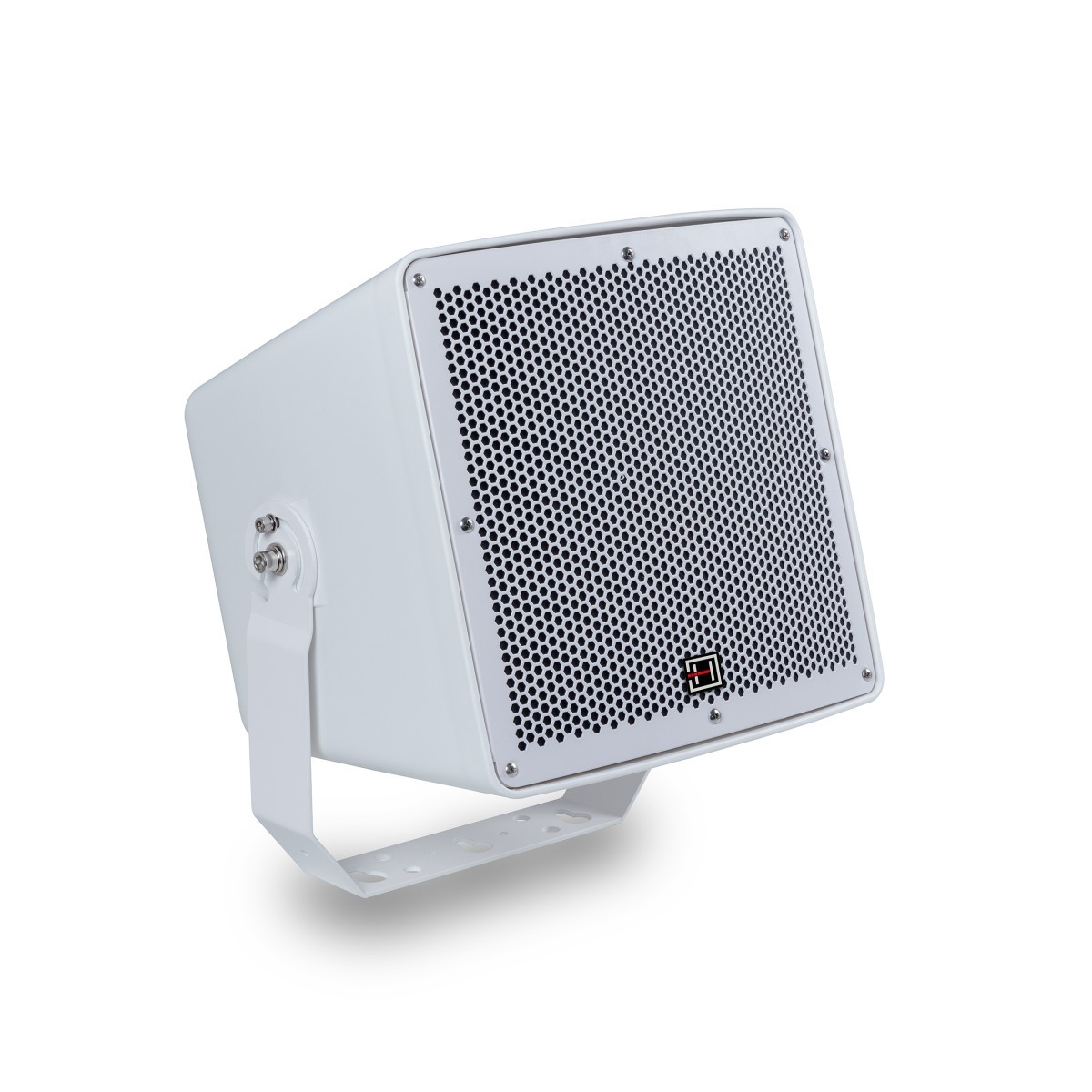

There are many fixed outdoor applications that require high-power / wide coverage sound projectors. In these cases, traditional horn speakers do not offer the required audio spectrum, for example, for background music or other high-quality audio contents in big spaces like parks, production facilities, sports fields, shopping center parking lots, etc. Since HELVIA's EVOCA HP series projectors are designed as 2-way coaxial speakers with vented ports and a fixed 90° x 60° (H x V) waveguide, they are essentially high-power speakers but built to offer an IP65 rating and last overtime, even when exposed to the elements. The series consists of two models: one with 150W RMS power output and an 8" woofer and a 1" HF driver (EVOCA HP150) and the other with 300W RMS power output and a 12" woofer and a 1.7" HF driver (EVOCA HP300). Sensitivity (1W@1m) ranges from 96dB to 99dB, resulting in sound pressure levels typically found in portable and/or rental audio systems. Although these projectors are equipped with internal 70V and 100V line transformers with 5 selectable power levels, they can easily be driven by low-impedance (8ohm) power amplifiers. The IP65 rating is ensured both by the grille and mounting bracket, which are treated against humidity and rust, and by the high-quality UV-resistant plastic materials used for the external structure and internal components. All this with a view to maximum durability over time even if constantly exposed to the elements.
Long-range sound projection
Ideal for extended sound coverage in outdoor spaces
8" high-power woofer
HF horn-loaded driver designed for high sound pressure levels
70V/100V transformer with selectable power settings and 8 Ohm output
IP65 protection for all weather conditions
Multi-layer protective grille and baffle made of high-quality engineering plastic
Reliable and long-lasting performance in humid outdoor conditions

RMS Power: 150W
Impedance: 8 O
Sensitivity (1W@1m): 96 dB
Frequency Response: 70Hz-20kHz
Woofer Type: 1×8" (200 mm) / 2" voice coil
Tweeter Type: 1×1" (25 mm) / 1" voice coil
Dispersion (HxV): 90°×60°
Cabinet Material: Polypropylene
Grille Material: Steel with two-layer foam protection
Input Connector: 4-Position grid type terminal

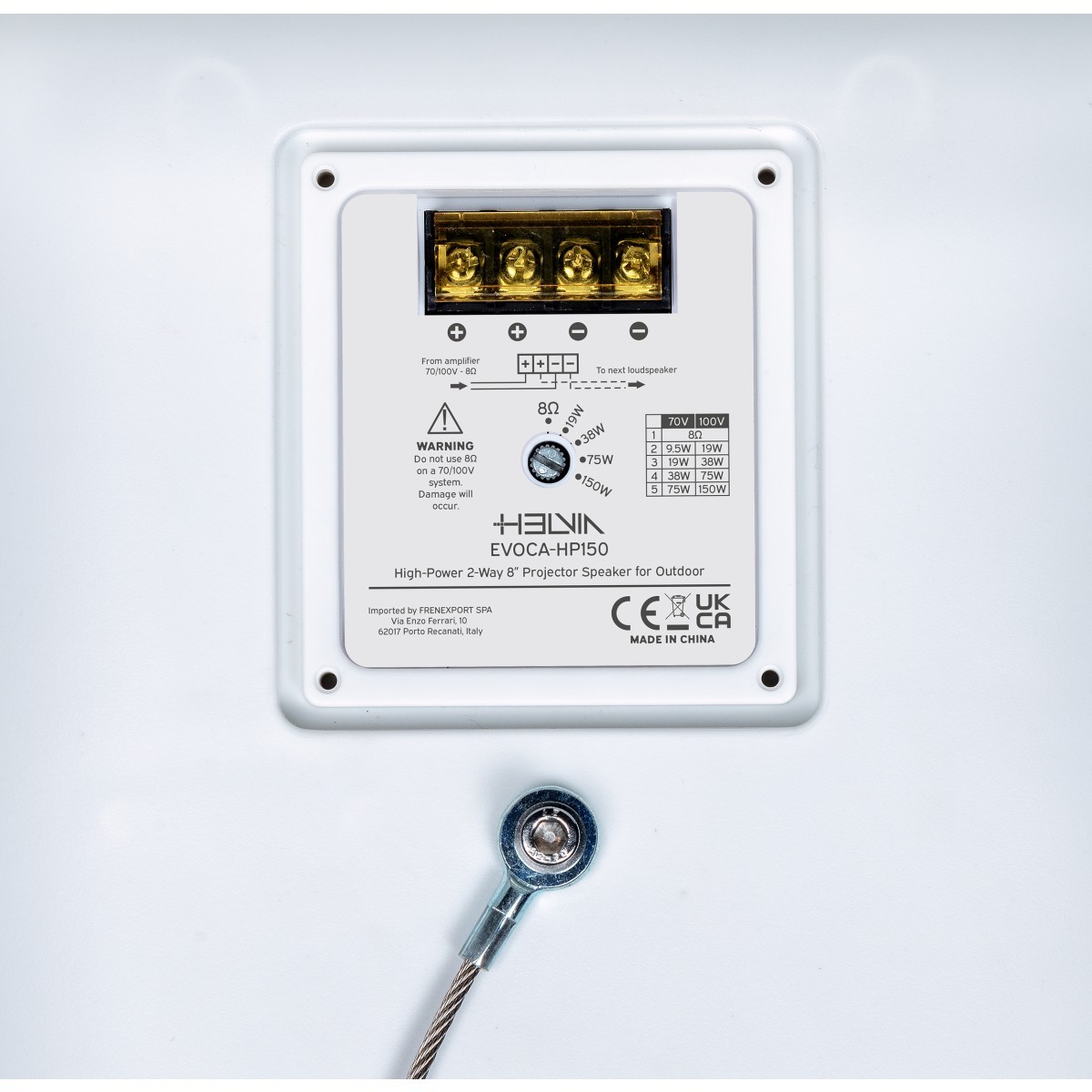

Transformer (70/100V): 19W-38W-75W-150W + 8ohm output
IP Rate: IP65
Finish: White
Projector Dimension (with bracket): 309 x 317 x 352 mm – 12.16 x 12.48 x 13.86 inches
Weight: 11 kgs – 24.25 lbs.
Packing Size: 40 x 40 x 41 cm
Packing Weight:13,2 kgs – 29.1 lbs.
