- HMMA PLAY series is designed for all those PA applications where space is quite zero. In half 19" Rack Unit there is a Class-D amplifier with powers ranging from 35W to 120W (70-100V or 4-16ohm outputs), a USB/BT/FM Radio with Remote Control, and a mixer for the control of the individual audio sources and the master. It is also possible to connect these amplifiers to your alarm system and power a 24V in the event of a fire prevention system. Really the perfect solution for small business premises.
- Compact design, Half 19 Rack Unit Size
- 100V-70V & 4-16 ohm Speaker Output
- Rated Power: 35W RMS
- Built-in USB Player, FM Radio & BT Streaming with remote controller
- 2 MIC inputs (MIC1 with 6.3mm Jack; MIC2 with 2 XLR and Phantom)
- 1 EMC input, 2 Line Inputs, 1 Line Output
- High-Performance Class-D amplifier with Switching Power Supply
- Individual Volume control for Mic 1-2, Line 1-2, MP3/FM/BT
- Bass/Treble and Master Volume Control
- DC24V Auxiliary Power Input
- Rated Power: 35W @ 4ohm
- Speaker Outputs: 100V or 70V & 4Ohms-8 Ohms-16 Ohms

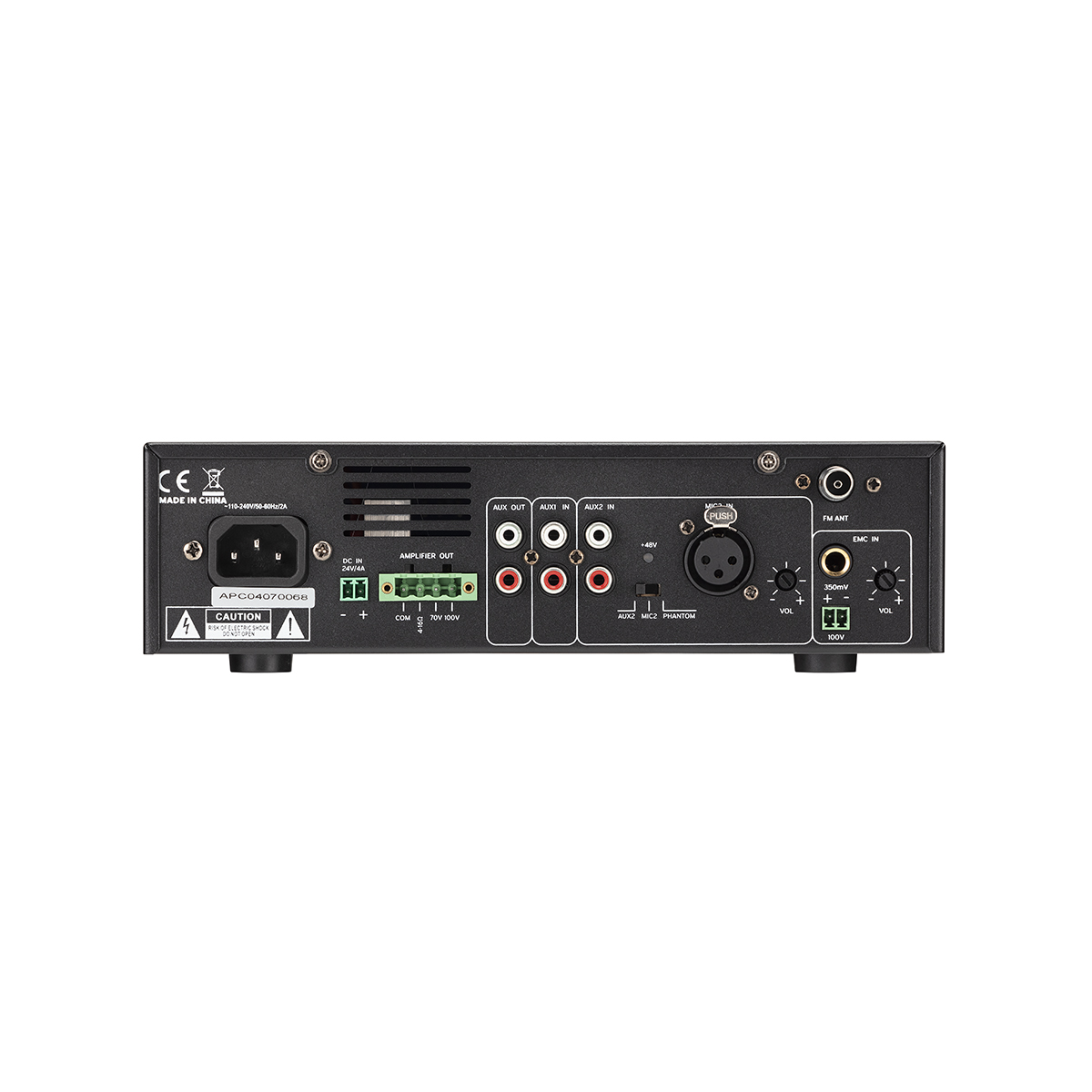

- Connectors: Mic1 Input with unbalanced 6.3mm Jack; MIC2 with balanced XLR and Phantom Power; Line1-2 Inputs and Line Output with RCA
- Knob Controls: Microphone 1-2, Line1-2, MP3/FM, bass/treble and master
- Sensitivity: MIC 1&2 5mV; AUX 1&2 350mV; EMC 350mV
- MIC frequency response: 180Hz-10kHz (±3dB)
- AUX frequency response: 70Hz-16kHz (±3dB)
- Noise: <5mV (4 ohm load output terminal)
- THD: <1% 1KHz
- Protection: Short-Circuit, Clip, Overload and High-Temp Protection
- Bass-Treble Adjustment: 10dB (±2)
- USB Connection: Type-B, Female
- USB Drive Format: FAT32 format 32GB Max
- Player File Formats: MP3 e streaming audio wireless BT
- BT Receiving Distance: 10m
- BT Standard: BT2.1+EDR
- Power Requirement: AC~110-220V
- Priority: EMC > MIC1 > Others
- Unit Size (W×D×H): 247x198x66 mm
- Packing size (W×D×H): 343x302x121 mm
- Net Weight: 2.5kg
- Gross Weight: 3.2Kg
GYÁRTÓ: HELVIA

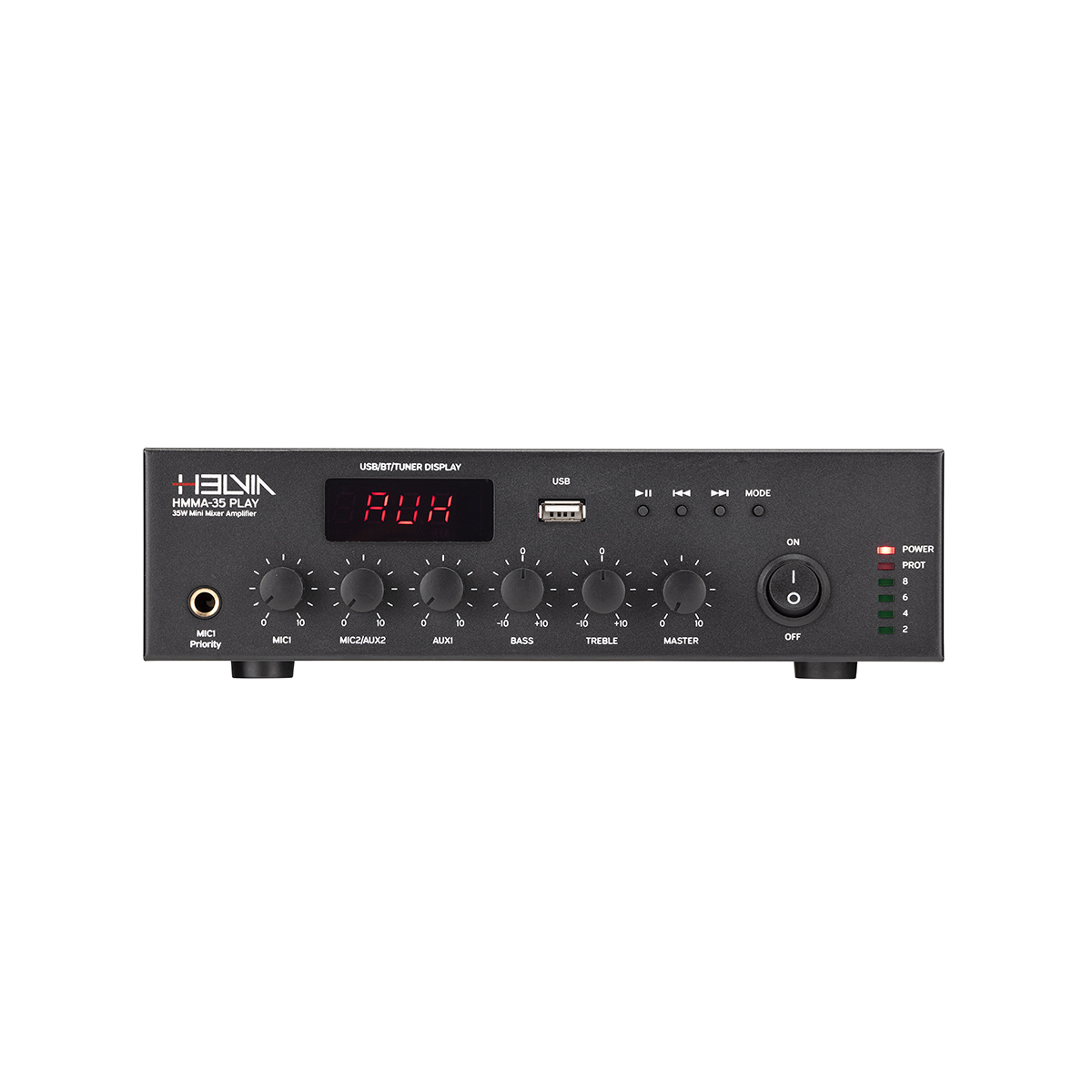

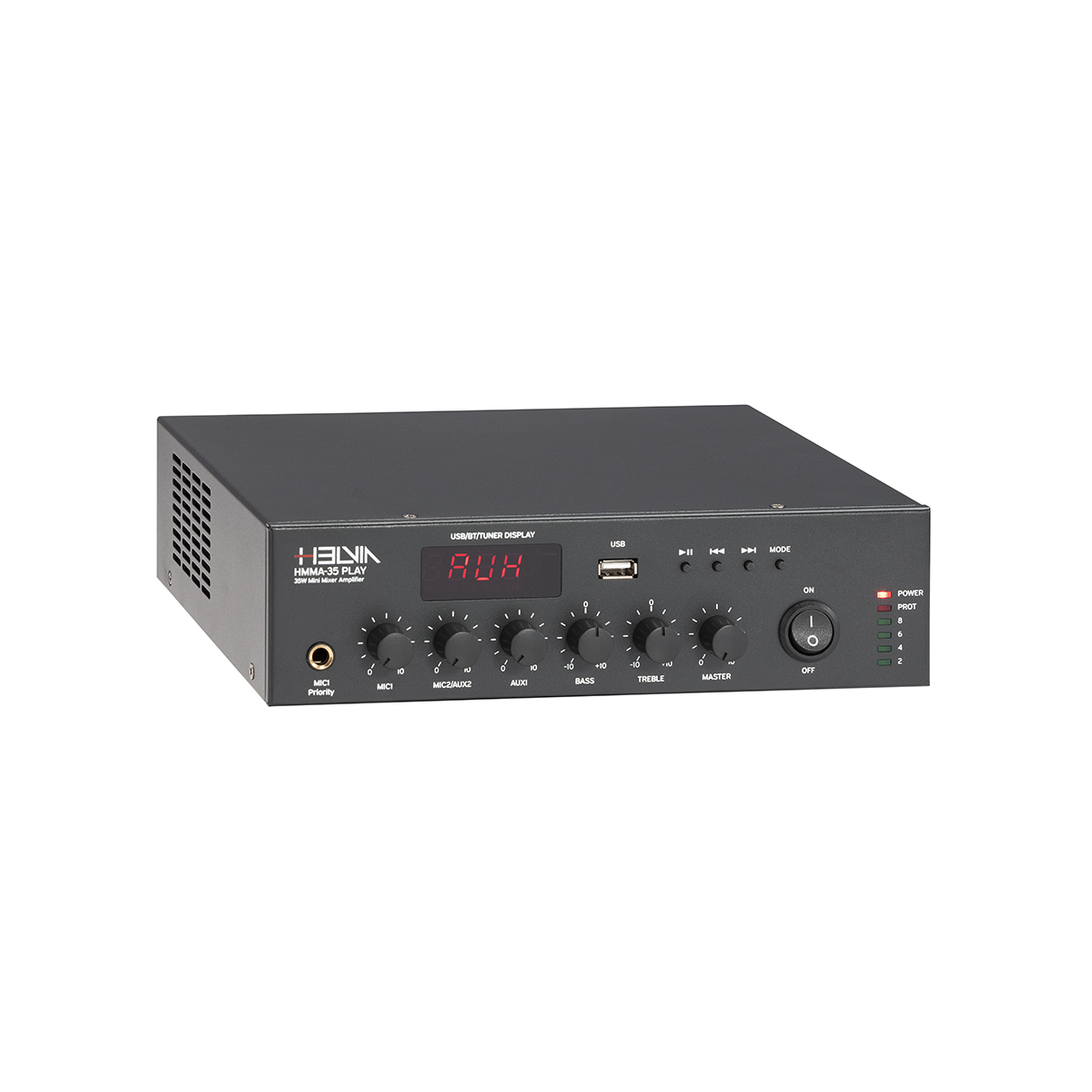

HELVIA HMMA-35 PLAY - 35W mini digitális keverőerősítő, USB/FM/BT funckióval
- Gyártó: HELVIA
- Cikkszám: J052J
-
55 900 Ft
