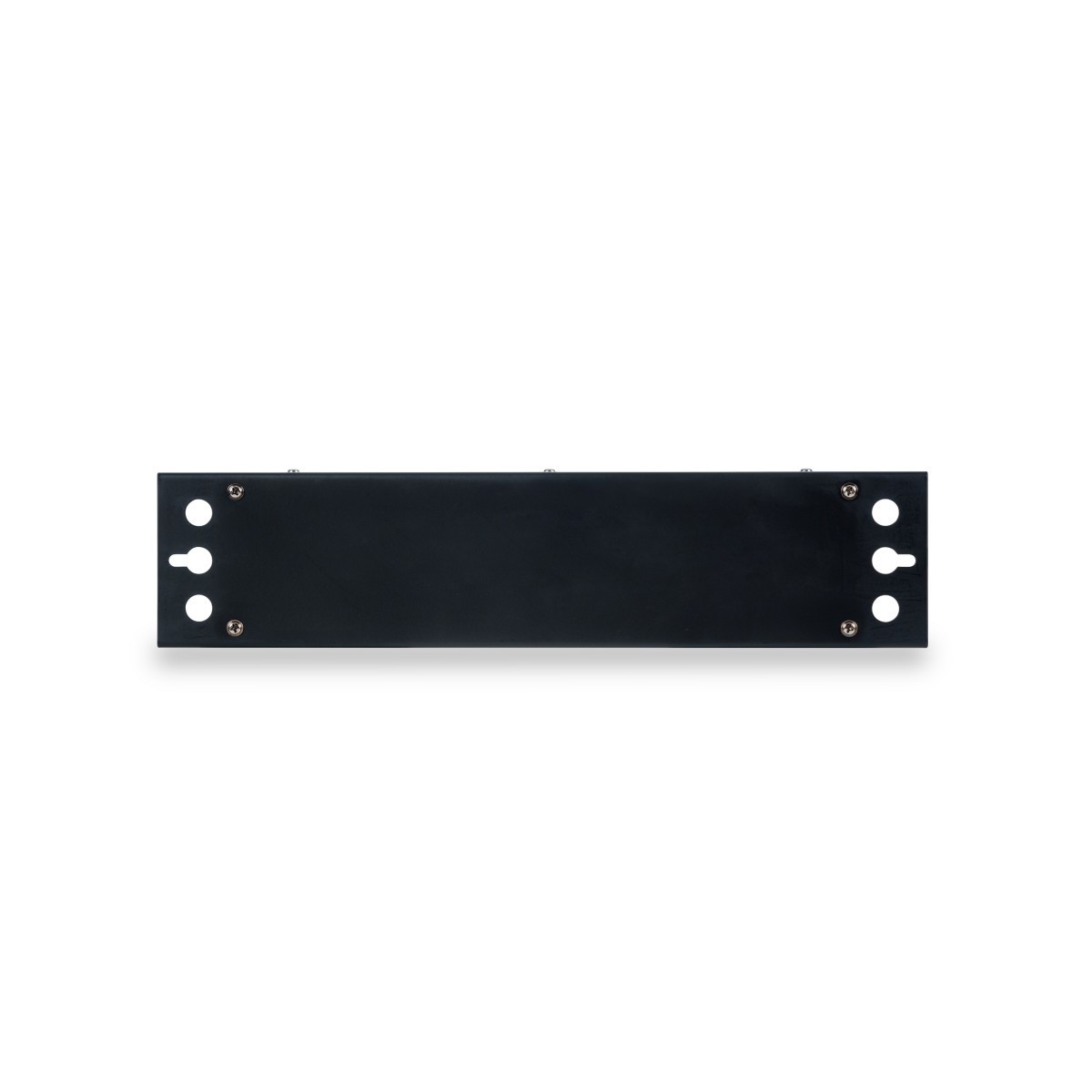

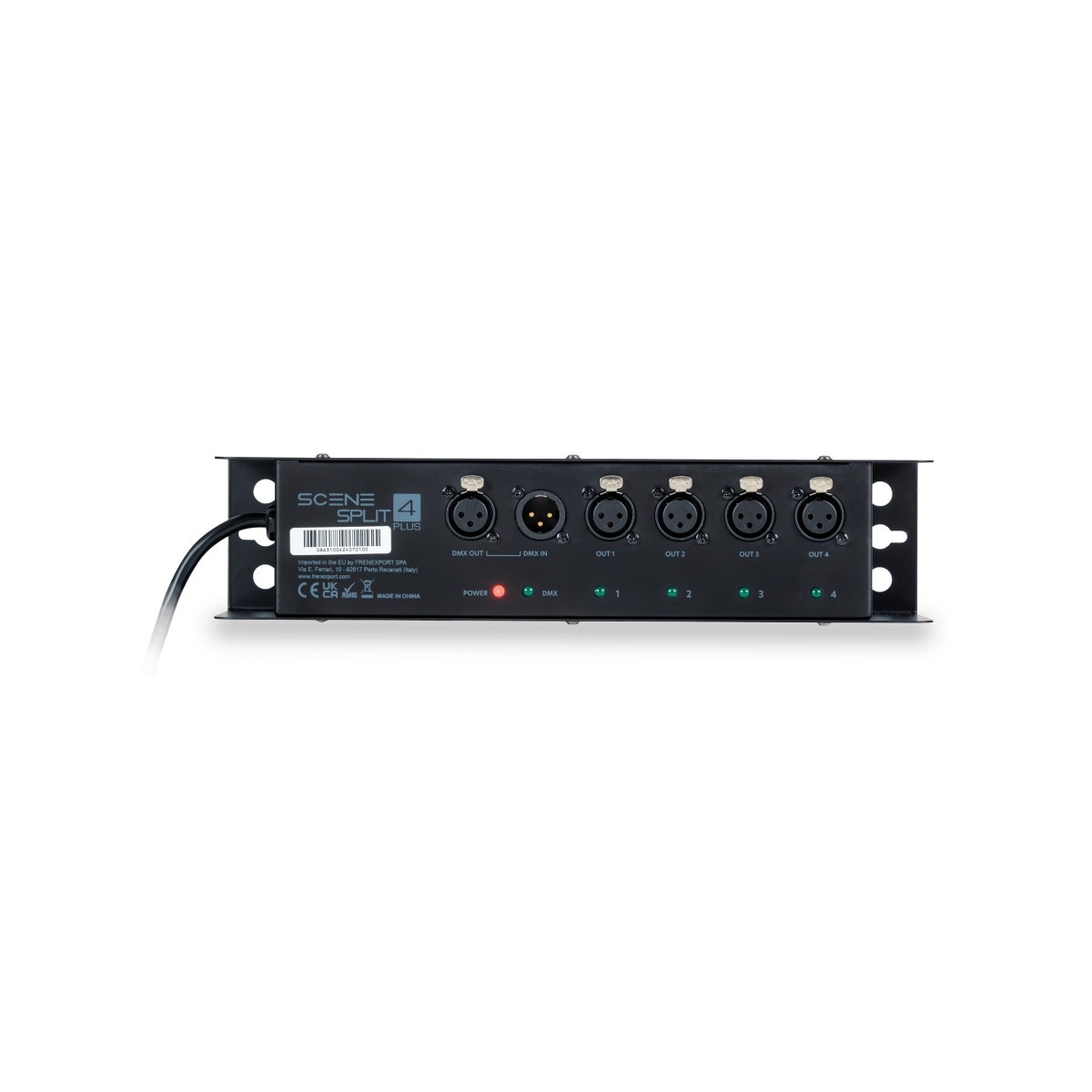

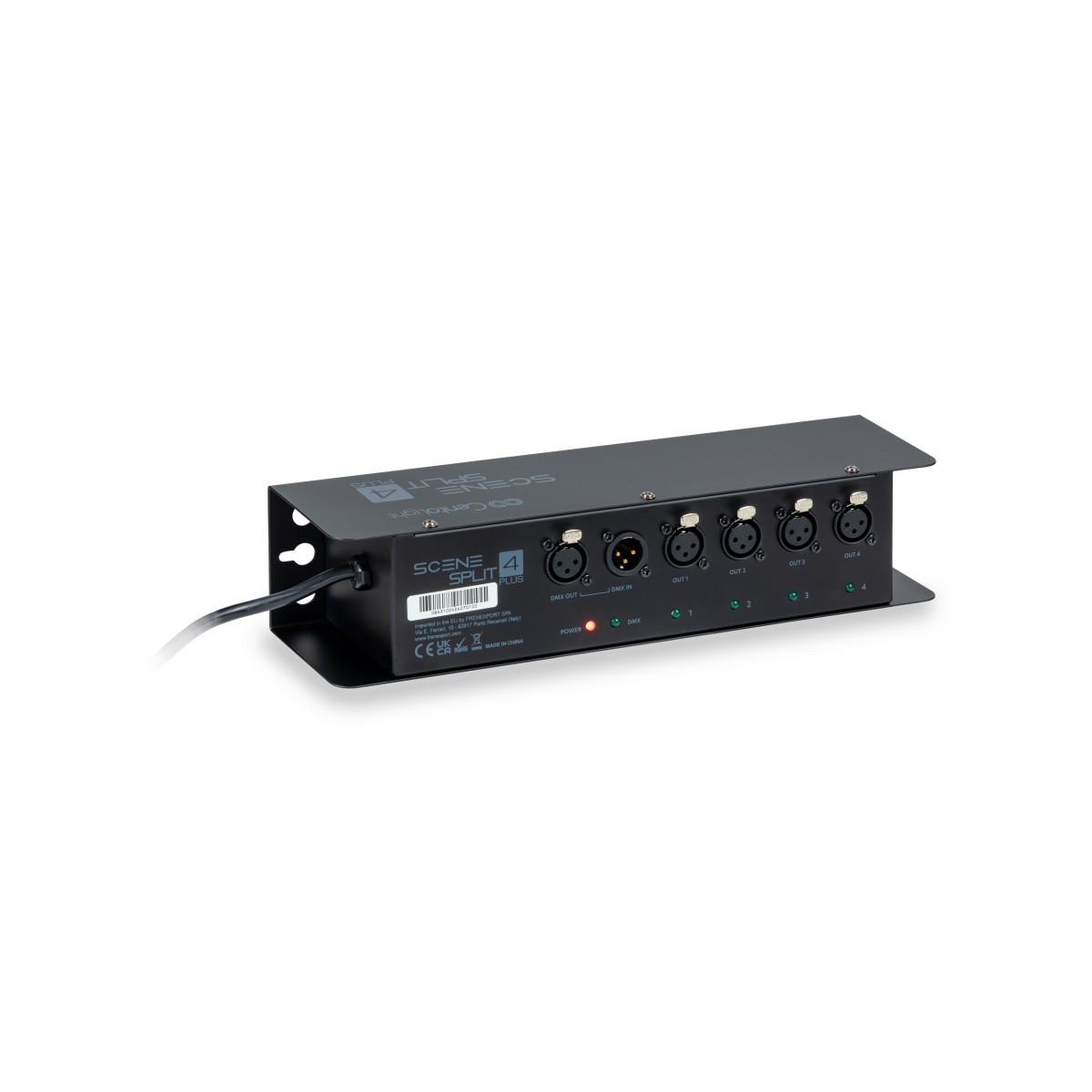

- SCENESPLIT 4 PLUS is a professional and optoisolated DMX distributor 1IN - 4OUT, designed for maximum versatility, allowing use as a desktop device or mounted on TRUSS structures. Its robust construction, combined with the superior quality of internal components and advanced circuit design, ensures reliable performance even in the most demanding conditions. The integrated optical isolation effectively protects connected equipment from electrical interference and failures, ensuring a stable and interference-free DMX signal. This makes it an ideal solution for professional applications in the entertainment industry, including live events, theaters, TV studios, and fixed installations.
- Separate high voltage protection on each Outputs
- High quality power supply stage for maximum stability at wider range voltage input (from 100 ~ 240Vac)
- High quality optical coupler for maximum isolation
- High quality XLR Connector for improved conductivity
- Power Input: AC100 ~ 240Vac 50/60Hz
- Fuse: F1A - 250V
- Protocols: DMX-512
- Data Input/Outputs: 3-pin XLR male (In) female (out) sockets
- Data Pin Configuration: Pin 1 shield, Pin 2 (-), Pin 3 (+)
- Distributor Size (WxHxD): 322 x 80 x 72 mm
- Net Weight: 1.2 kg
- Packing Dimension (WxHxD): 370 x 132 x 140 mm
- Packing Gross Weight: 1.5 kg
GYÁRTÓ: CENTOLIGHT
CENTOLIGHT SCENESPLIT 4 PLUS - 1 Input / 4 Outputs DMX Distributor,
- Gyártó: CENTOLIGHT Kategóriák: Fénytechnika > Fényvezérlő
- Cikkszám: CTL0107
-
31 900 Ft
