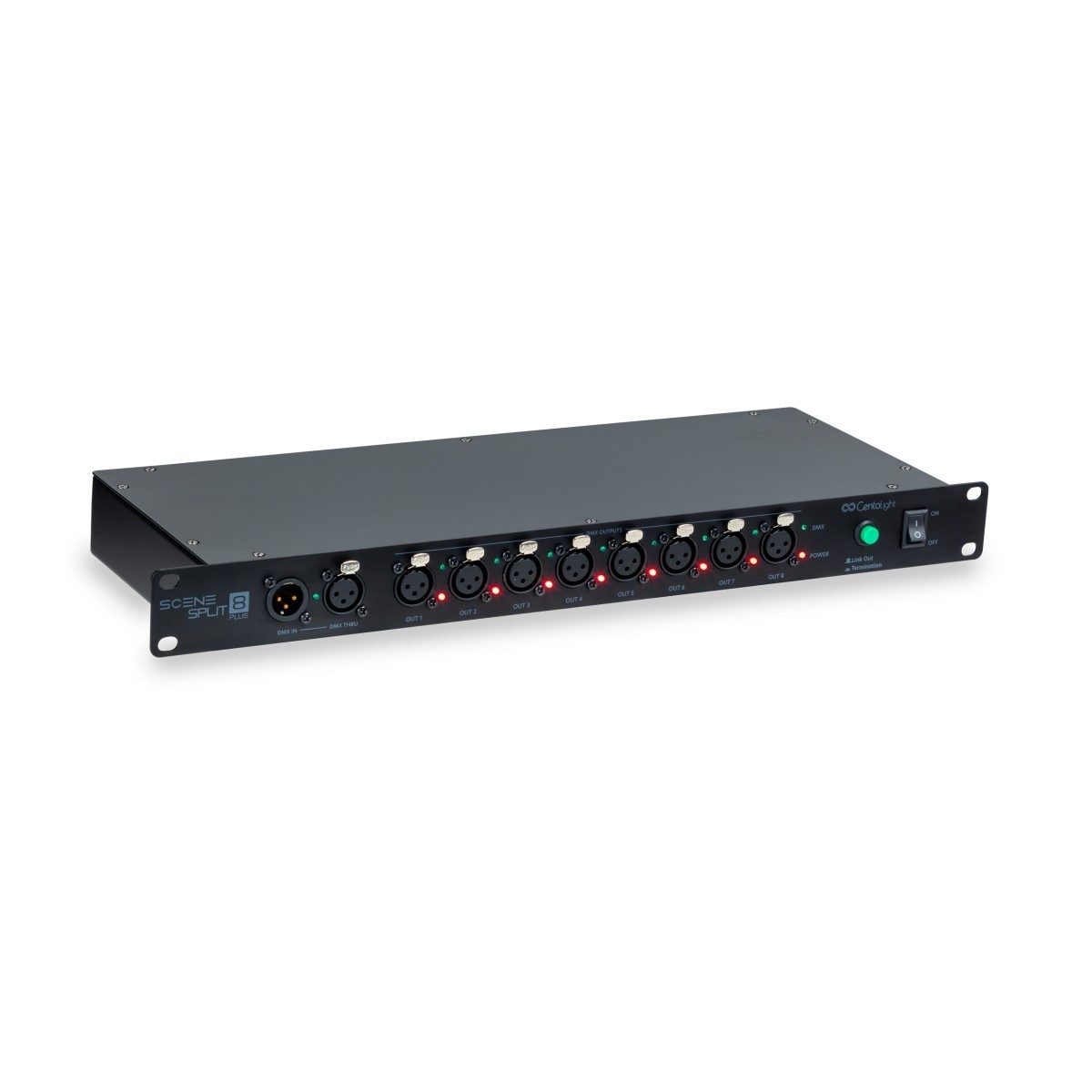

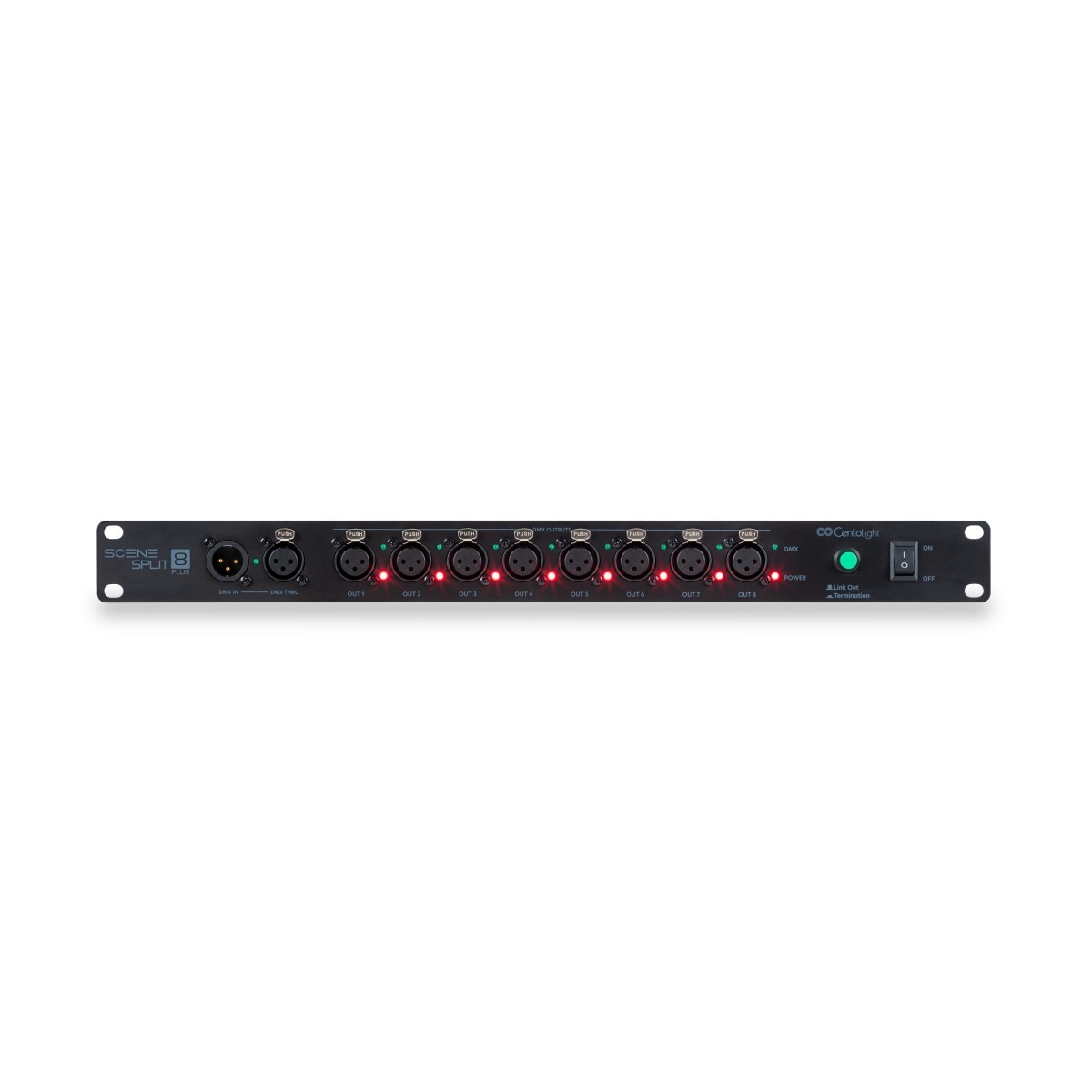

- SCENESPLIT 8 RACK is a professional and optoisolated DMX distributor 1IN - 8OUT, 1U 19" rack mount. The quality of the internal components, the circuit design, and the optical isolation make it ideal for professional applications in the entertainment industry, ensuring reliability, signal protection, and high performance even in demanding environments.
- Separate high voltage protection on each Outputs
- High quality power supply stage for maximum stability at wider range voltage input (from AC100 ~ 240Vac 50/60Hz)
- High quality optical coupler for maximum isolation
- High quality XLR Connector for improved conductivity

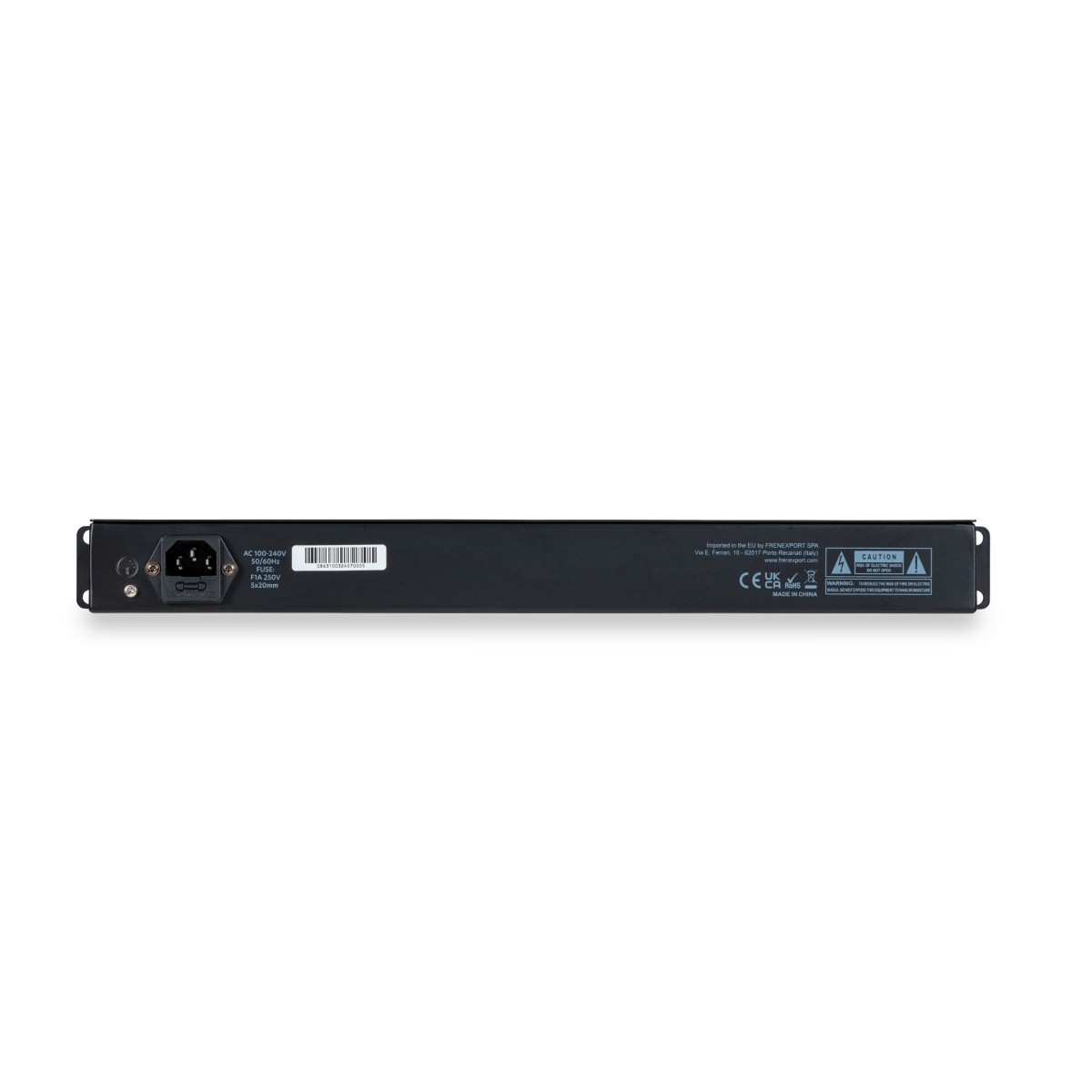

- Power Input: AC100 ~ 240Vac 50/60Hz
- Fuse: F1A - 250V
- Protocols: DMX-512
- Data Input/Outputs: 3-pin XLR male (In) female (out) sockets
- Data Pin Configuration: Pin 1 shield, Pin 2 (-), Pin 3 (+)
- Distributor Size (WxHxD): 482 x 155 x 45 mm
- Net Weight: 2.5 kg
- Packing Dimension (WxHxD): 495 x 245 x 90 mm
- Packing Gross Weight: 3.0 kg
GYÁRTÓ: CENTOLIGHT
CENTOLIGHT SCENESPLIT 8 PLUS - 1 Input / 8 Outputs DMX Distributor, 1 rack unit
- Gyártó: CENTOLIGHT Kategóriák: Fénytechnika > Fényvezérlő
- Cikkszám: CTL0106
-
42 900 Ft
