SoniX
GYÁRTÓ: HELVIA
- The SoniX M1616D digital matrix, thanks to its powerful and flexible hardware and software architecture, is designed to be the heart of multi-zone audio systems for various types of installations. Its sophisticated processing, the quality of the AD and DA converters, the presence of a built-in card with 16 additional DANTE™ digital inputs and outputs, the advanced audio processing features with patented algorithms including Echo Cancellation, Feedback Suppression, Noise Suppression, and Automatic Gain, the 8 GPIO ports for integration with other equipment, and the powerful PC control software make it suitable for both conference solutions and multi-zone systems with up to 32 sources and 32 outputs.
- Analog Device SHARC® chipset
- Capacity up to 400MIPS, 1600MFLOPS
- 32-bit and 40-bit Floting-Point Processing
- Full Channel Audio Signal Matrix
- 16 Line/Mic Inputs x 16 Analog Outputs
- Built-in Dante™ 16x16 Channels
- AEC (Echo Cancellation), AFS (Feedback Suppression)
- ANS (Noise Suppression), AGC (Automatic Gain),
- Auto Mixer, Ducker function
- 12 band PEQ, 1200ms Delay & Limiter on Outputs
- 8x GPIO ports
- 16 Presets for recall
- USB Audio Player/Recorder
- Support Camera Tracking
- Processor: ADI SHARC 21489(x2)
- Sampling rate/Digitalizing bit: 48K/24bit
- Input Gain: from 0dBu to 48 dBu
- Phantom Power: 48V
- Frequency Response: 20~20KHz ±0.3dB
- Maximum Level: +18dBu
- THD + Noise: 0.003%@4dBu
- Input Dynamic Range: 110dB
- Output Dynamic Range: 112dB
- Background Noise (A-weighted): -91dB
- Common Mode Rejection Ratio @60Hz: 80dB
- Channel Isolation @1KHz: 108dB
- Input Impedance (Balanced Connection): 5.4KO
- Output Impedance (Balanced Connection): 600O
- System Delay: <3ms
- Working Power: AC110~240V 50Hz-60Hz
- Maximum Power Consumption: <40W
- Dimensions (WxDxH): 482 x 260 x 45mm (19 x 10.2 x 1.8 in)
- Shipping Weight: 4Kg – 8.8 lbs.
GYÁRTÓ: HELVIA

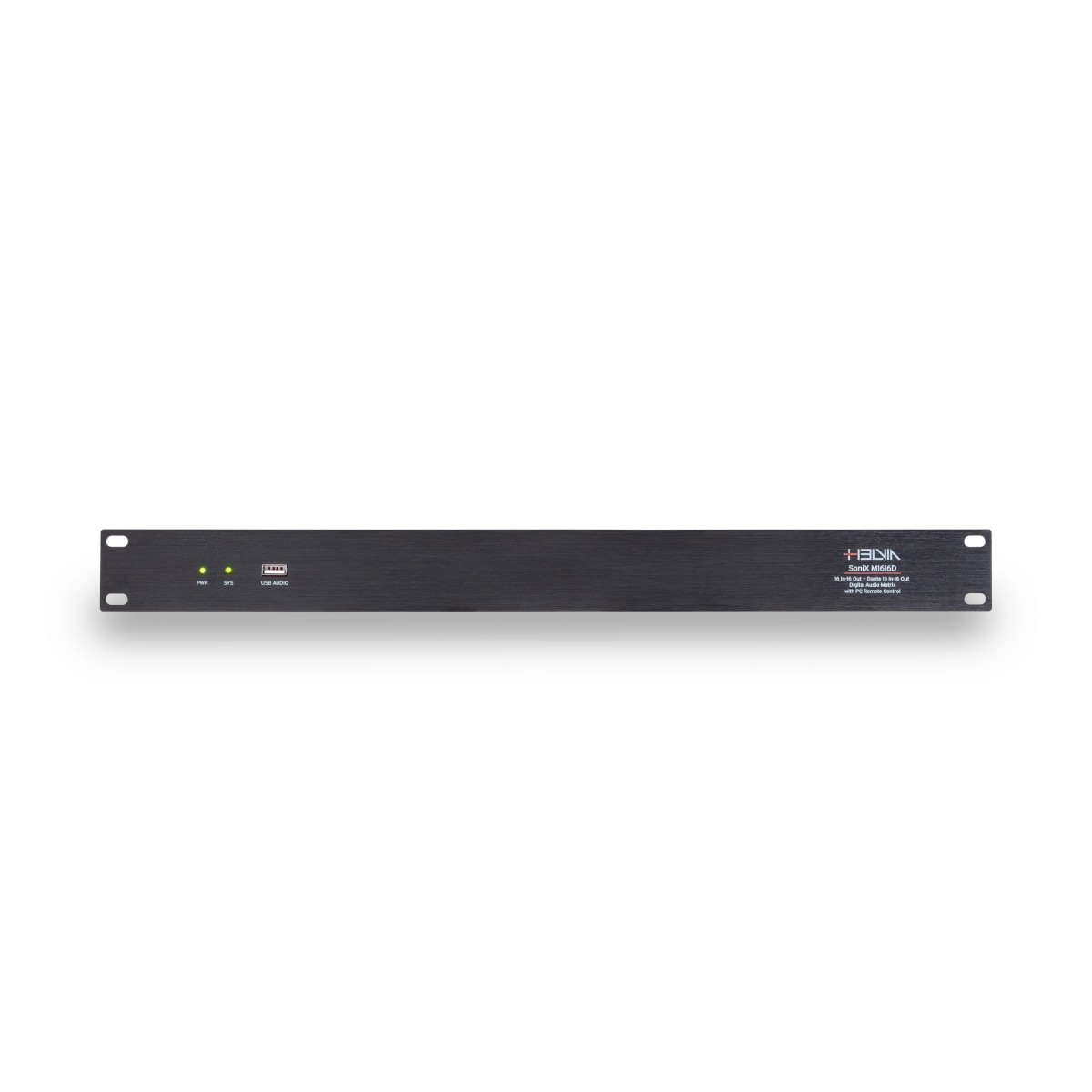

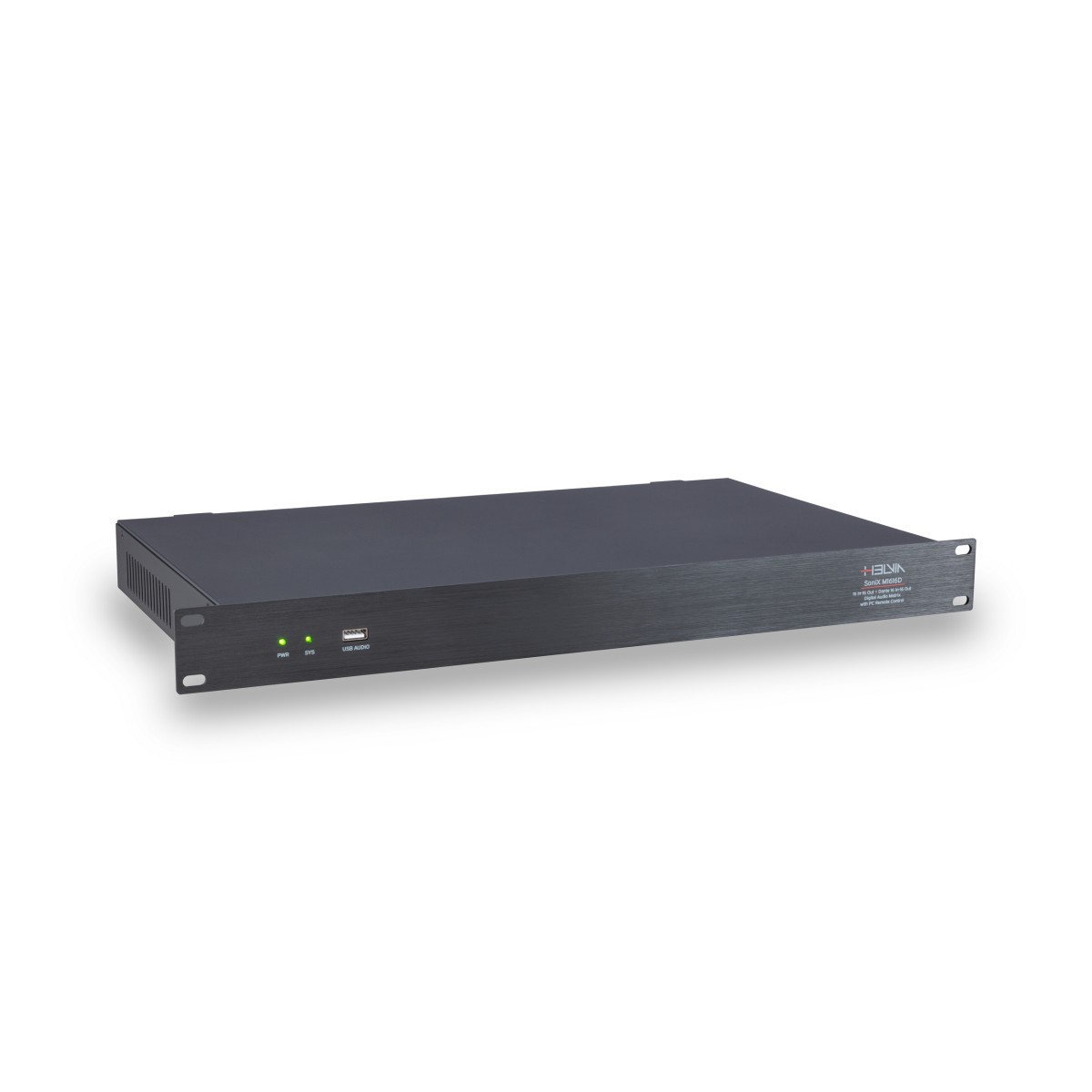

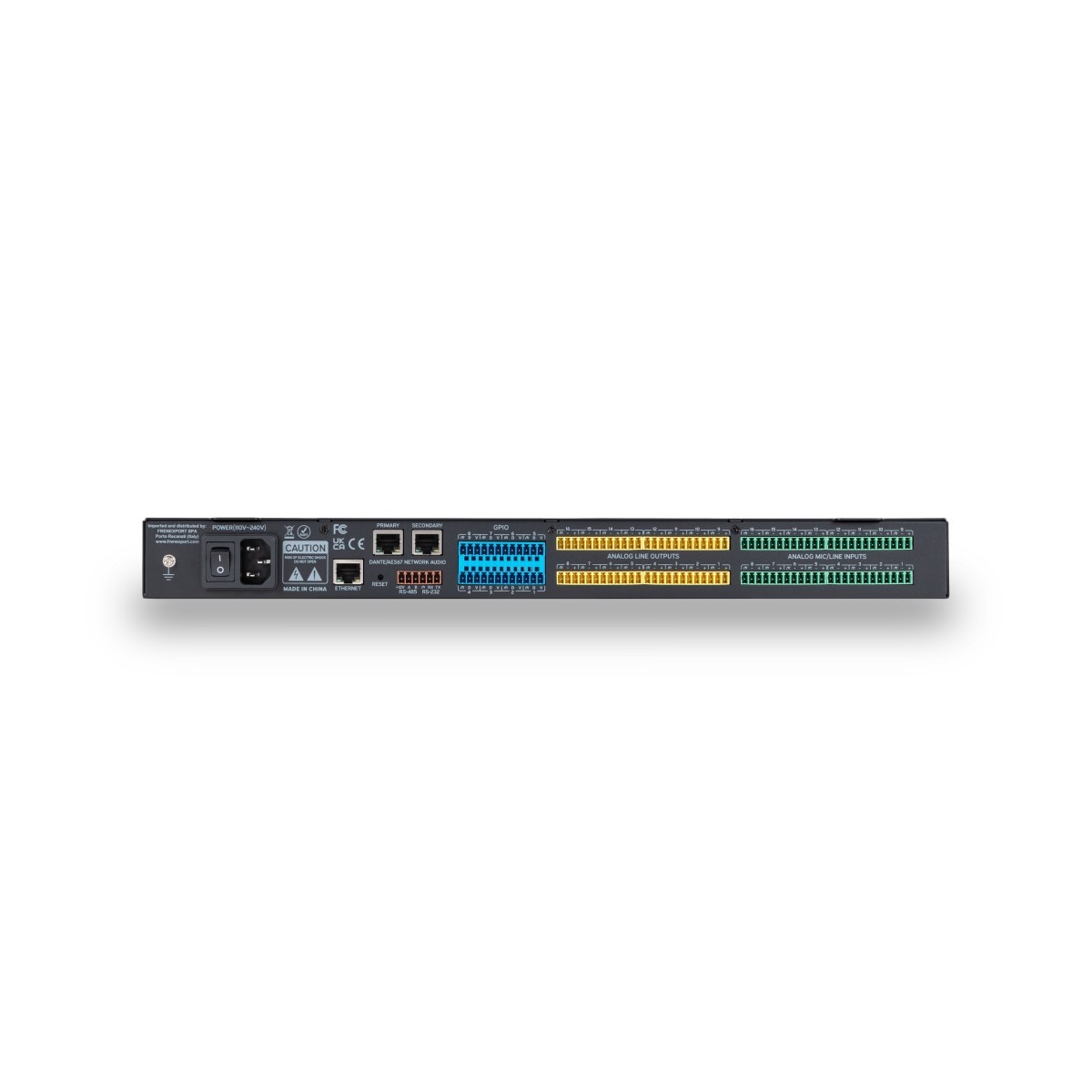

HELVIA SONIX M1616D - 16In-16Out DSP Audio Matrix with built-in 16x16 Dante™ Channels
- Gyártó: HELVIA Kategóriák: Hangtechnika > Keverő
- Cikkszám: HLV0133
-
1 067 900 Ft
